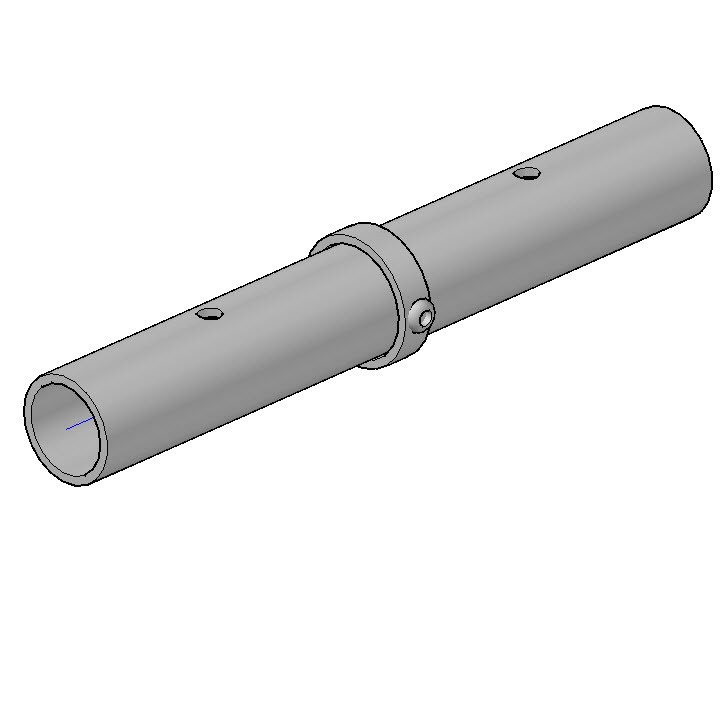

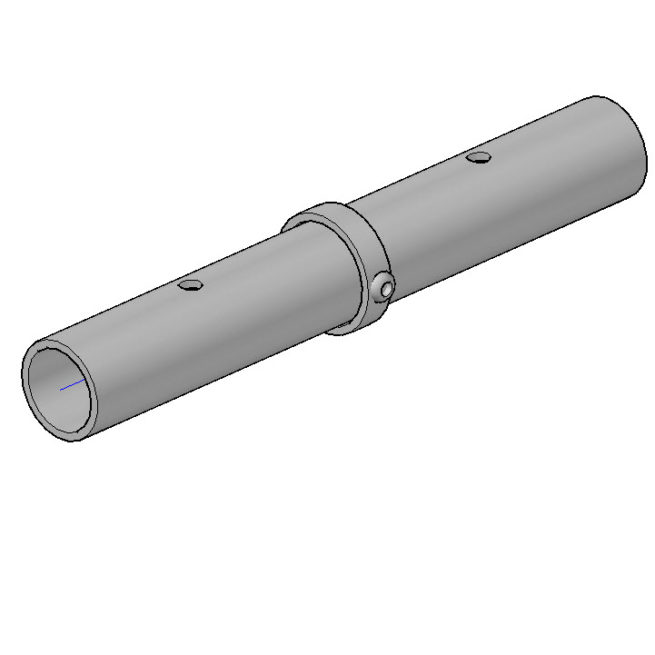

Splicing for 2 in. with a stop in the middle.
This splicing is for use with a straight cut without extension for the 2″ pole
Cut any size tent poles and drill holes on each end about 3-1/4″ to accommodate this splicing.
The poles have metal lines that are added to the edge of the metal to make the fit tight with the 2″ OD x .125″ Aluminum pole. (ID:1.75 in)
Approximately hole location is (0″ – 3.25″ – 6.50″) total length is 9 in.
